Advanced Water Treatment & Gas Stripping Solutions by Heatking Steel Tech Pvt Ltd Welcome to Heatking Steel Tech Pvt Ltd, a premier manufacturer of heavy-duty industrial water treatment and purification equipment. In advanced Demineralization (DM) plants and Boiler Feed Water systems, the presence of dissolved gases—such as Carbon Dioxide (CO2) and Hydrogen Sulfide (H2S)—can cause severe corrosion and rapidly exhaust downstream filtration resins. Our Degasser Tower with Integrated Storage Tank provides a scientifically engineered, highly efficient, and space-saving solution to this problem. Designed to mechanically strip and release harmful dissolved gases from processed water, our integrated system drastically reduces the chemical regeneration costs of your Anion exchange resins while protecting your critical boiler equipment from carbonic acid corrosion.

The Science of Counter-Current Gas Stripping

The Heatking Degasser Tower operates on the highly proven principle of forced-draft, counter-current aeration.

At The Process : Raw or cation-treated water is uniformly sprayed at the top of the tower through specialized distribution nozzles. As the water trickles downward through a packed bed of high-surface-area media (Pall Rings or Raschig Rings), it breaks into thin films.
The Stripping Action : Simultaneously, a heavy-duty centrifugal blower pushes high-velocity clean air upwards from the bottom of the tower. This opposing airflow effectively "strips" the dissolved Carbon Dioxide (CO2) from the water droplets, venting the gas out through the top exhaust.
Integrated Storage : The completely degassed, purified water safely collects in the integrated storage tank located directly beneath the tower, ready to be pumped to the next stage of your water treatment plant.

Cross-Industry Water Treatment Applications

The Heatking Degasser Tower with Integrated Tank is an indispensable asset for industries requiring ultra-pure, zero-corrosion water:

Power Plants & Boiler Feed : Removing CO2 to prevent the formation of carbonic acid, thereby protecting high-pressure boiler tubes and steam pipelines from catastrophic corrosion.
Demineralization (DM) Plants : Placed immediately after the Cation Exchanger to remove carbonic acid before the water enters the Anion Exchanger.
Pharmaceutical & Chemical Processing : Ensuring ultra-pure, gas-free water for sensitive chemical syntheses and medicinal formulations.
Textile & Paper Industries : Treating massive volumes of process water to ensure chemical stability during manufacturing.

Core Engineering & Operational Advantages

Massive Cost Savings (Resin Protection) : By mechanically removing up to 95% of dissolved CO2, our Degasser Tower significantly reduces the load on downstream Anion exchange units. This extends the life of your expensive resins and drastically reduces the consumption of caustic soda used for chemical regeneration.
Integrated Space-Saving Architecture : By combining the Degassing Tower and the Degassed Water Storage Tank into a single, seamless vertical unit, we minimize the overall footprint of the equipment, saving valuable floor space in your water treatment facility.
Extreme Corrosion Resistance : Degassed water is highly aggressive. To ensure lifetime durability, our towers and tanks are fabricated from premium materials. We offer High-Grade Stainless Steel (SS 304/316), FRP (Fiberglass Reinforced Plastic), or heavy-duty Mild Steel (IS 2062) internally coated with thick, anti-corrosive Natural Rubber Lining or Epoxy.
Optimized Packing Media : Filled with high-quality PP (Polypropylene) Pall Rings that provide maximum contact surface area between the falling water and rising air, ensuring the highest possible gas-stripping efficiency without causing pressure drops.
Zero-Leak & Vibration-Free: : Built with precision automated welding and structurally reinforced blower mounts to ensure continuous, vibration-free, and leak-proof operation even during 24/7 industrial cycles.

Technical & Structural Specifications

Parameter	Premium Engineering Specifications
Manufacturing Authority	Heatking Steel Tech Pvt Ltd
Material of Construction (MOC)	SS 304 / SS 316 / MS with Rubber Lining / FRP

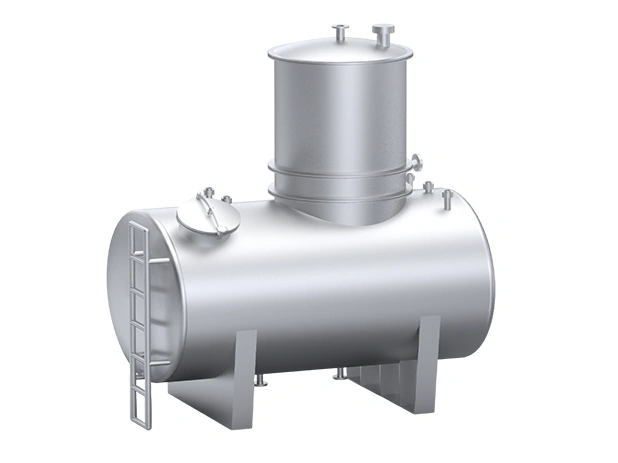

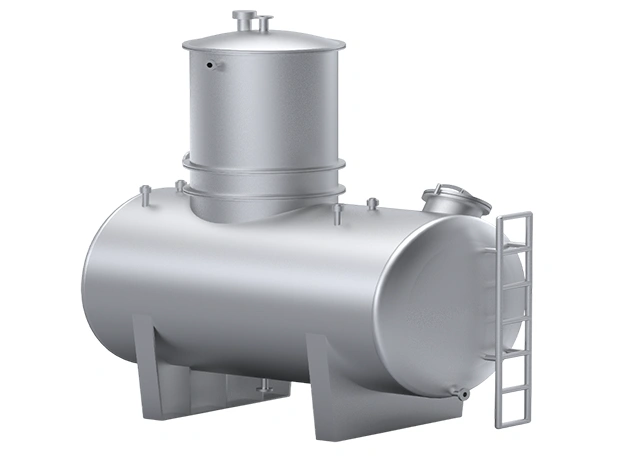

System Architecture	Vertical Degasser Tower mounted on an Integrated Storage Tank
Volumetric Capacity (Tank)	1,000 Liters to 50,000+ Liters (Fully Customized)
Flow Rate Capacity	Custom-engineered from 1 m³/hr to 100+ m³/hr
Packing Media	High-Surface-Area Polypropylene (PP) Pall Rings / Raschig Rings
Aeration Mechanism	Heavy-Duty Forced Draft Centrifugal Blower (with Electric Motor)
Internal Distribution	PVC / SS Header and Lateral Spray Nozzle System
Standard Accessories	Level Indicator, Vent, Drain Valve, Overflow Nozzle, Manhole

Bespoke Engineering by Heatking

At Bespoke Engineering by Heatking we understand that every water treatment plant has specific flow rates and CO2 ppm levels. We do not mass-produce generic towers; we engineer highly accurate gas-stripping solutions. Our heavy-engineering team calculates the exact tower diameter, height of the packing media bed, and CFM (Cubic Feet per Minute) required from the centrifugal blower to match your plant's specific water chemistry. From compact Stainless Steel units for cleanrooms to massive Rubber-Lined Mild Steel tanks for heavy industrial DM plants, we build exactly what your infrastructure demands. .
