High-Performance Reactor Vessels & Resin Plant Equipment

Heavy-Duty Chemical Processing Solutions by Heatking Steel Tech Pvt Ltd Welcome to Heatking Steel Tech Pvt Ltd, a premier manufacturer of heavy-duty industrial processing equipment. When your manufacturing operations involve complex chemical syntheses, high-temperature blending, or extreme pressurized reactions, standard storage tanks simply will not suffice. You require precision-engineered, structurally impenetrable vessels. Our Stainless Steel Reactor Vessels and Complete Resin Plant Systems are scientifically designed to facilitate safe, highly efficient, and perfectly controlled chemical reactions. Built from premium industrial-grade stainless steel and carbon steel alloys, our equipment ensures maximum operational safety, optimal heat transfer, and lifetime durability in the most demanding chemical environments.

Industrial Reactor Vessels: Precision Under Pressure

The Heatking Industrial Reactor is the heart of any chemical processing plant. Engineered to withstand deep vacuums, high internal pressures, and extreme thermal shocks, our reactors guarantee absolute structural integrity during volatile chemical processes.

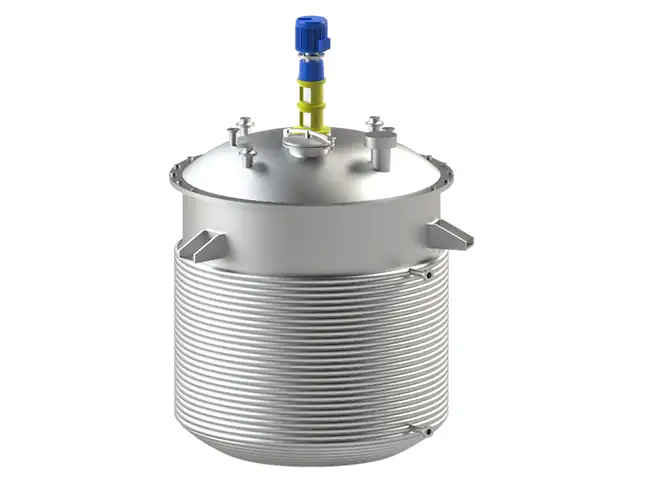

Advanced Thermal Control: Available with Plain Jackets, Dimple Jackets, or Half-Pipe Limpet Coils. These external heating/cooling jackets allow the precise circulation of steam, thermic fluids, or chilled water to strictly control the internal reaction temperature.
Custom Agitation Systems: Equipped with heavy-duty top-mounted agitators. Depending on the viscosity of your chemical batch, we engineer custom impellers (Anchor, Turbine, Propeller, or Paddle types) with advanced mechanical seals to ensure zero vapor leakage.
Explosion-Proof & Safe: Designed to accommodate Flame-Proof (FLP) motors, safety rupture discs, and high-pressure relief valves to guarantee operator safety on the plant floor.

Complete Resin Plant Processing Equipment

Beyond standalone reactors, Heatking Steel Tech Pvt Ltd specializes in manufacturing complete, turnkey Synthetic Resin Plants. We design the entire interconnected ecosystem required for the production of Alkyd, Epoxy, Phenolic, Melamine, and Unsaturated Polyester resins.
A standard Heatking Resin Plant setup includes:

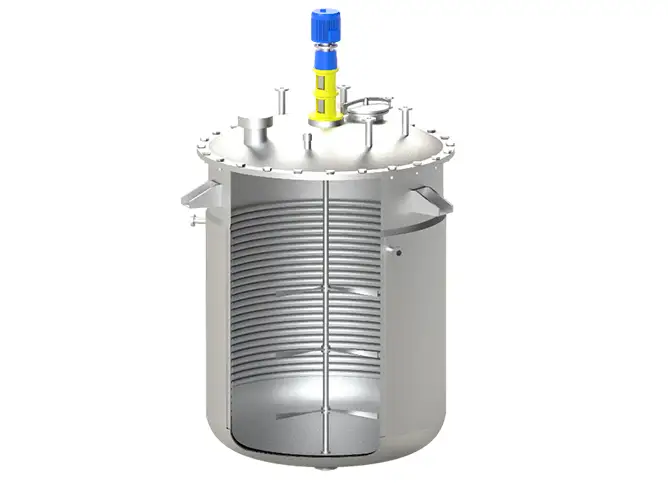

Main Reaction Vessel : High-temperature reactor with a heavy-duty anchor agitator and internal cooling coils to manage exothermic reactions.
Shell & Tube Condensers : Precision-engineered vertical or horizontal heat exchangers to efficiently condense chemical vapors back into liquid form.
Catch Pots & Separators : For the accurate separation of water and process solvents during the reaction cycle.
Receivers : High-strength storage vessels to safely collect and hold the condensed process fluids.
Thinning / Blending Tanks : Secondary vessels equipped with high-speed mixers where the thick, highly viscous cooked resin is safely cooled and blended with industrial solvents

Cross-Industry Applications

Our Reactor Vessels and Resin Plants are trusted by heavy industries requiring strict compliance with chemical engineering standards:

Paints & Coatings Industry : Manufacturing Alkyd, Acrylic, and Polyester resins for industrial paints, varnishes, and protective coatings.
Adhesives & Sealants : Formulating high-strength industrial glues, epoxy resins, and hardeners.
Pharmaceuticals & APIs : Safely conducting complex, highly sterile chemical syntheses for Active Pharmaceutical Ingredients.
Specialty Chemicals : Processing petrochemicals, lubricants, industrial solvents, and agricultural chemicals under strict temperature controls.

Technical & Structural Specifications

Parameter	Premium Engineering Specifications
Volumetric Capacity	100 Liters to 15,000+ Liters (Fully Customizable)
Drive Mechanism	Direct Drive or Gearbox driven (Equipped with VFD for speed control)
Vessel Architecture	Vertical Cylindrical with Conical or Torispherical Bottom
Internal Surface Finish	Sanitary Mirror Polish / Electropolished (Ra < 0.4 µm)
Thermal Jacket	Optional Heating/Cooling Jacket with PUF Insulation & SS Cladding
Standard Sanitary Fittings	CIP Spray Ball, Sanitary Sight Glass, Anti-Vortex Baffles, Sample Valve

Heatking’s Heavy Fabrication Promise

At Heatking Steel Tech Pvt Ltd, we know that chemical engineering leaves absolutely zero room for error. We provide end-to-end custom fabrication based strictly on your process engineering blueprints. From accurately calculating the thickness of the steel plates to withstand specific pressure ratings, to manufacturing the exact pitch of the limpet coils for maximum heat transfer, our engineering team builds machinery that performs flawlessly.
